Hemoglobin: Introduction, Composition, Derivatives, Types and Abnormality

Let us make an in-depth study of the hemoglobin. After reading this article you will learn about 1. Introduction to Hemoglobin 2. Composition of Hemoglobin 3. Hemoglobin Derivatives 4. Types of Hemoglobin and 5. Biochemistry of Abnormality in the Hemoglobin.

Introduction to Hemoglobin:

It is an oxygen/CO₂ carrier protein present in the red blood corpuscles of blood. Hemoglobin is a conjugated chromo-protein having heme as its prosthetic group. Heme is the prosthetic group, not only of hemoglobin but also of myoglobin, cytochromes etc.

Hemoglobin is formed by the combination of heme with globin (protein). Globin is made up of four polypeptide chains (an oligomeric protein). Two of these polypeptides are known as alpha (α) and the other two are known as beta (β). Each alpha chain has 141 amino acids and each beta chain has 146 amino acids, which are arranged in a definite sequence. Its molecular weight is 65,000.

Due to the characteristic folding of its tertiary structure each polypeptide forms a cup like structure with a pocket like area where the prosthetic group, heme is buried. Heme has iron, which is linked to the imidazole nitrogen of the histidine in positions 58 and 87 of the alpha chains. In the beta chain the heme iron is linked with histidine in positions 92 and 63. Altogether there are four heme groups in one hemoglobin molecule.

Composition of Hemoglobin:

Heme:

It is an iron-porphyrin compound. It is the prosthetic group embedded in the packet like structure formed by folding of the hemoglobin tertiary structure.

Porphyrin:

Porphyrin is a complex compound with a tetrapyrrole ring structure. Pyrrole is a hetero­cyclic compound having the following structure.

This porphin is substituted by different groups at positions numbered from 1-8 to form the porphyrin. Depending upon the groups (methyl, acetyl, propyl, butyl or venyl) present on these positions different types of porphyrins are identified, that will be seen during the synthesis of heme.

Properties of porphyrins:

1. They act both as acids (-COOH) and bases (-NH2).

2. Their isoelectric pH is between 3-4.5.

3. Porphyrins are fluorescent and coloured due to presence of alternating double bonds.

4. Porphyrinogens are colourless.

Biosynthesis of heme:

Heme is an iron porphyrin structure, synthesized in the reticuloendothelial cells (bone marrow) of adult human being. Erythropoietin produced in kidney stimulates the formation, maturation and release of erythrocytes by bone marrow.

Early stage of erythrocyte cells contain porphy­rin, during the course of their development, porphyrin is converted to heme by addition of iron and then to hemoglobin by addition of protein, globin. The type of porphyrin present in heme is protoporphyrin-III (also known as No. IX).

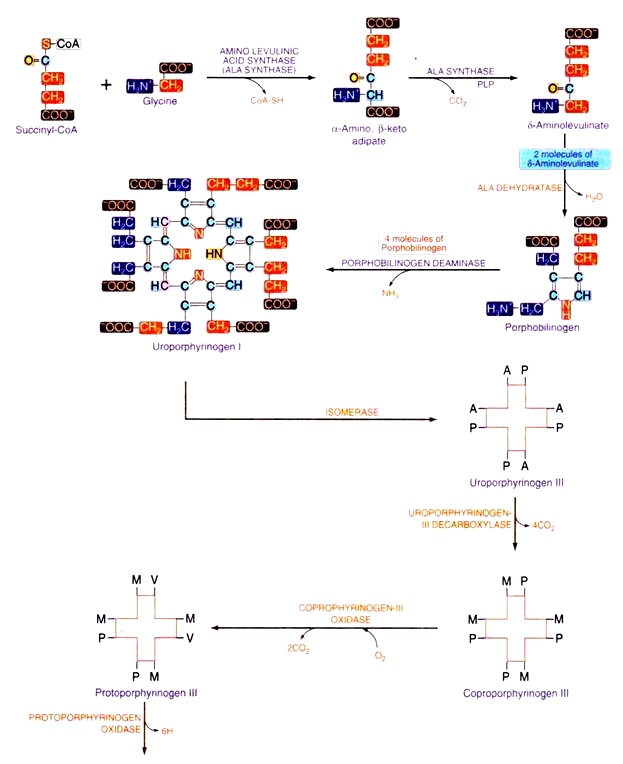

It is synthesized starting from glycine and succinyl-CoA. Given below is the diagrammatic representation of biosynthesis of Heme where ‘A’ stands for acetyl group, ‘P’ stands for propyl group, ‘M’ for methyl group, and ‘V’ for venyl group.

Regulation of heme synthesis:

The first enzyme in this sequence i.e. ALA synthase is the key regulatory enzyme for heme synthesis which is inhibited by heme the end product of the metabolism. ALA synthase is a regulatory enzyme. Heme acts as an Apo repressor molecule and is a negative regulator for the synthesis of ALA synthase-I (heme inhibits the gene).

Inhibitors of heme synthesis: The following substances inhibit heme synthesis:

i. Succinylacetone (SA) is an inhibitor of heme synthesis that acts on the enzyme aminolevulinic acid dehydratase.

ii. N-methyl mesoporphyrin IX blocks iron insertion into protoporphyrin IX and thus acts as an inhibitor of heme synthesis.

iii. Isonicotinic acid hydrazide (INH) is an inhibitor of 6-aminolevulinic acid synthase.

Disorders related to abnormalities in the synthesis of porphyrins:

Porphyria’s:

Porphyria’s are a group of diseases in which there is an increased excretion of porphyrins or porphyrin precursors (intermediates of porphyrin synthesis). About 85% of heme synthesis occurs in erythrocyte precursors and 15% in liver. Therefore porphyria’s are classified into two types (1) Erythro­poietic and (2) Hepatic. Some of them are inherited while others are acquired.

Hemoglobin Derivatives:

There are some derivatives of normal Hb that arise due to metabolic changes in the RBC.

The various hemoglobin derivatives are:

1. Oxyhemoglobin (HbO₂):

The main function of hemoglobin is to transport oxygen from the lung to the tissues. In lungs the partial pressure of oxygen is 100 mm of Hg, at this pressure hemoglobin is 95-96% saturated with oxygen. On binding with O₂ in the lungs hemoglobin is converted to oxy-hemoglobin (Hb02). O₂ is bound to heme iron.

Hb + O₂ → HbO₂

2. Reduced Hemoglobin (HHb):

Oxy-hemoglobin moves to the tissue where the partial pressure of O₂ is 26 mm of Hg due to which oxygen is released into the tissues and in turn H⁺ binds to Hb and forms reduced hemoglobin.

HbO₂ + H⁺ → HHb + O₂

3. Carbaminohemoglobin:

Hemoglobin also binds to CO₂ in the tissues. CO₂ is bound to the α-amino group at the N-terminal end of each of the four polypeptide chains of hemoglobin to form carbaminohemoglobin. As one CO₂ binds O₂ is released.

4. Methemoglobin:

In RBC the iron of hemoglobin is normally in ferrous (Fe²⁺) form, but it is readily oxidized to the ferric (Fe³⁺) form by hydrogen peroxide formed by RBC cell metabolism, to yield met-hemoglobin. Ferric iron is incapable of binding O₂ therefore the functions of hemoglobin are disturbed. Normally 1.7 to 2.4 % of total hemoglobin will be in the form of met-hemoglobin. Increase in the percent of met-hemoglobin is prevented by the peroxidase action of a naturally occurring peptide known as glutathione present in the RBC. Met-hemoglobin is dark brown in colour.

The percent of met-hemoglobin can increase if the person consumes drugs like ferricyanide, nitrite, qui­nines, hydroxylamine’s, acetanilide and sulfonamide. Higher levels of met-hemoglobin is observed clinically in factory workers who inhale (or contact through skin) aromatic nitro and amino com­pounds and in patients taking large amounts of acetanilide and sulfonamides. The symptoms are cyanosis (blue skin) and dyspnoea (labored breathing).

Importance of methemoglobin:

Met-hemoglobin can be used to overcome cyanide poisoning. By injecting met-hemoglobin it combines with cyanide to form cyanomethemoglobin preventing cyanide poisoning.

5. Carboxyhemoglobin:

Oxy-hemoglobin can bind to carbon monoxide (CO). Even normal, non- oxygenated hemoglobin can bind with CO to form carboxyhemoglobin. [Hb + CO → HbCO]. CO has got an affinity of 200 times more than that of O₂ towards Hb. Hemoglobin can bind more readily to CO than to O₂. Even if there is a little amount of CO in air, it can displace oxyHb to form carboxyHb. Due to this there will be tissue hypoxia because the oxygen binding capacity is reduced and there is also reduced O₂ releasing capacity i.e. it cannot release O₂ though it may be bounded to O₂.

City dwellers have at least 1% of carboxyhemoglobin which can increase to 8% depending upon the pollution. Over traffic can increase carboxyHb to 40% which leads to death. Clinically such patients show cherry red colour of skin. CO poisoning can be treated if high amount of O₂ is provid­ed continuously at high pressure, then at such high concentrations and pressure HbCO is dissociated forming HbO₂ + CO. When treatment continues for 2 hours CO is expelled out.

Types of Hemoglobin:

There are three types of hemoglobin’s that are normally found in human beings, they are:

1. HbA;

Found in normal adult human beings – contains 2α and 2β chains.

2. HbA₂:

Found in some human beings and is considered normal — contains 2α and 2β chains.

3. HbF:

Foetal hemoglobin — found in growing foetus — contains 2α and 2ƴ chains.

Each chain is synthesized by the information obtained from the gene for hemoglobin, α chain is synthesized from a genes of hemoglobin, β chain from β genes of hemoglobin likewise y and 8 from their respective genes. There are 2 pairs of a genes but only one pair each of β, γ and δ genes.

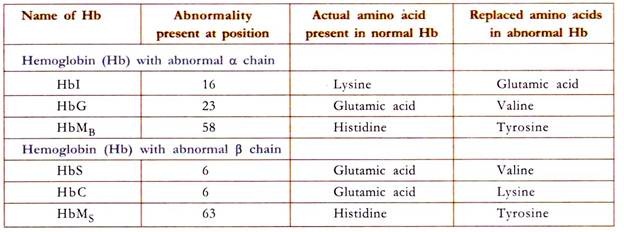

Abnormal hemoglobin’s arise due to mutation in the gene for the hemoglobin synthesis. There are about 300 abnormal hemoglobin’s. Some of them are those which have defect in α genes and some are with defective β chains.

Biochemistry of Abnormality in the Hemoglobin:

HbS or Sickle Cell Hemoglobin:

Sickle cell hemoglobin (HbS) arises due to the defect in β chain in which glutamic acid present at the 6^th position is replaced by valine. Valine is also present naturally at position one. These two valine residues form hydrophobic interaction producing a sticky patch on HbS. Due to this replacement there is a sticky patch on HbS which appears on the oxy HbS. There is a complementary site to this sticky patch on deoxy HbS and also on deoxy HBA.

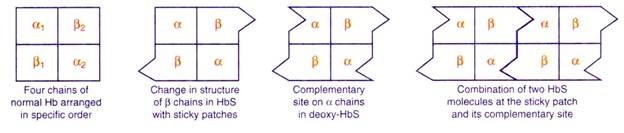

The mechanism of biconcave RBC converting to sickle shape is given here under:

When hemoglobin molecules combine together in chains they form precipitates of HbS. The precip­itate formed in the RBC sinks down and the biconcave shape of RBC is converted to sickle shape.

The life span of RBC is reduced to less than half (about 30 days). HbS is very unstable, due to which there is excessive hemolysis. This results in anemia called sickle cell anemia. The physiological changes observed in sickle cell anemia are – physical exertion, weakness, short of breath, leukemia and heart murmurs.

HbM or Methemoglobin:

The defect lies both in α and β chains. This is due to replacement of histidine residue in 58^th position in α chain and 63^rd position in β chain. Due to this replacement, the iron (Fe) present in the ferrous state is oxidized to ferric state. This ferric iron cannot bind oxygen. Therefore the oxygen carrying capacity is disrupted leading to anemia and hypoxia (low O₂ to tissues).

Thalassemia’s:

The defect in thalassemia’s is the decreased rate of synthesis of one of the polypeptide chains of the globin molecule. One of the chains is synthesized in less amounts than the other due to the defect in DNA.

There are two types of thalassemia:

1. β-thalassemia:

β-thalassemia occurs due to the decreased synthesis rate of P-chain of globin. Due to the deficiency of P-chain the a-chains either combine among themselves forming a-4-globin or it can combine with γ or δ chains, thereby forming more of HbA2 and HbF. This results in the impairment of the transport of O₂ by Hb resulting in hypoxia. There are very low levels of Hb i.e. 2-3 g/100ml (hypochromic cells). The life span of such RBC is greatly reduced. The symptoms include anemia, growth retardation, wasting and fever.

2. α-thalassemia:

α-thalassemia occurs due to the decreased rate of synthesis of α-chain of globin. But this is rarely seen due to the presence of two pairs of genes for a chain in the Hb gene. Due to lack of a chain, the β chain may combine either with δ, γ or among itself forming β₄, or β₂δ₂ or β₂γ₂.

Ghicose-6-Phosphate Dehydrogenase Deficiency:

It is an X-linked recessive hereditary disease charac­terised by abnormally low levels of the glucose-6-phosphate dehydrogenase enzyme (abbreviated G6PD or G6PDH). Glucose-6-phosphate dehydrogenase (G6PD) is an enzyme in the pentose phosphate path­way, a metabolic pathway that supplies reducing energy to cells (most notably erythrocytes) by maintain­ing the level of the co-enzyme nicotinamide adenine dinucleotide phosphate (NADPH).

The NADPH in turn maintains the level of glutathione in these cells that helps to protect the red blood cells against oxidative damage. G6PD converts glucose-6-phosphate into 6-phosphogluconolactone and is the rate- limiting enzyme of the pentose phosphate pathway.

Patients with G6PD deficiency are at risk of hemolytic anemia in states of oxidative stress. Individuals with the disease may exhibit non-immune hemolytic anemia in response to a number of causes. This can be due to severe infection, medication and certain foods. Broad beans contain high levels of vicine, divicine, convicine and isouramil—all are oxidants.

In states of oxidative stress, all remaining glutathione is consumed. Enzymes and other proteins (including hemoglobin) are subsequently damaged by the oxidants, leading to electrolyte imbalance, membrane cross-bonding and phagocytosis and splenic sequestration of red blood cells. The hemoglobin is metabolized to bilirubin (causing jaundice at high concentrations) or excreted directly by the kidney (causing acute renal failure in severe cases).

Deficiency of G6PD in the alternative pathway causes the build-up of glucose and thus there is an increase of advanced glycation end products (AGE). The deficiency also causes a reduction of NADPH which is necessary for the formation of Nitric Oxide (NO). The high prevalence of diabetes mellitus type 2 and hypertension in Afro-Caribbean’s in the West could be directly related to G6PD deficiency.

Patients are almost exclusively male, due to the X-linked pattern of inheritance, but female carriers can be clinically affected due to lyonization where random inactivation of an X-chromosome in certain cells creates a population of G6PD deficient red cells coexisting with normal red cells.

Although female carriers can have a mild form of G6PD deficiency (dependent on the degree of inactivation of the unaffected X- chromosome), homozygous females have been described; in these females there is coincidence of a rare immune disorder termed chronic granulomatous disease (CGD).

G6PD deficiency manifests itself in a number of ways:

i. Prolonged neonatal jaundice

ii. Hemolytic crises in response to:

a. Certain drugs

b. Certain foods, most notably broad beans

c. Illness (severe infections)

d. Diabetic ketoacidosis

iii. Very severe crises can cause acute renal failure

Diagnosis:

The diagnosis is generally suspected when patients from certain ethnic groups develop anemia, jaundice and symptoms of hemolysis after challenge to any of the above causes, especially when there is a positive family history.

Generally, tests will include:

i. Complete blood count and reticulocyte count; in active G6PD, Heinz bodies can be seen in red blood cells on a blood film

ii. Liver enzymes (to exclude other causes of jaundice)

iii. Lactate dehydrogenase (elevated in hemolysis and a marker of its severity)

iv. Haptoglobin (decreased in hemolysis)

v. A ‘direct anti-globulin test’ (Coombs’ test)—this should be negative, as hemolysis in G6PD is not immune-mediated

v. TSH measurement

Pyruvate Kinase Deficiency:

It is an inherited autosomal recessive genetic disorder which affects the survival of red blood cells. Pyruvate kinase deficiency is the second most common cause of enzyme- deficient hemolytic anemia, following G6PD deficiency. A variety of mutations can lead to lowered production, activity, or stability of pyruvate kinase, an enzyme essential to glycolysis. A total lack of this enzyme’s activity will be lethal.

Because the ability of erythrocytes to manufacture ATP depends on glycolysis, the cells become defi­cient in energy and hence are unable to maintain the activity of the basolateral Na⁺/K⁺-ATPase. This will result in an increase in intracellular [Na⁺] which will cause water to diffuse passively into the red blood cells (RBC) and will lead to swelling. This swelling will lead to lysis of the RBCs and an increase in plasma bilirubin.

The increase in plasma bilirubin will lead to jaundice and the lysis of the RBCs will lead to hemolytic anemia. The build-up of reaction intermediates can also increase the level of 2, 3-bisphosphoglycerate (2,3BPG) in the cells and affect tissue oxygenation. This will cause a ‘right shift’ in the hemoglobin oxygen saturation curve, implying a decreased oxygen affinity for the hemoglobin and earlier oxygen un­loading than under normal conditions.

Red blood cells use glycolysis as their sole energy source. In pyruvate kinase deficiency, the last step (phosphoenolpyruvate converted to pyruvate) of glycolysis is unable to occur. A discrepancy between red blood cell energy requirements and ATP generating capacity produces irreversible membrane injury result­ing in cellular distortion, rigidity and lysis. This leads to premature erythrocyte destruction by the spleen and liver.
